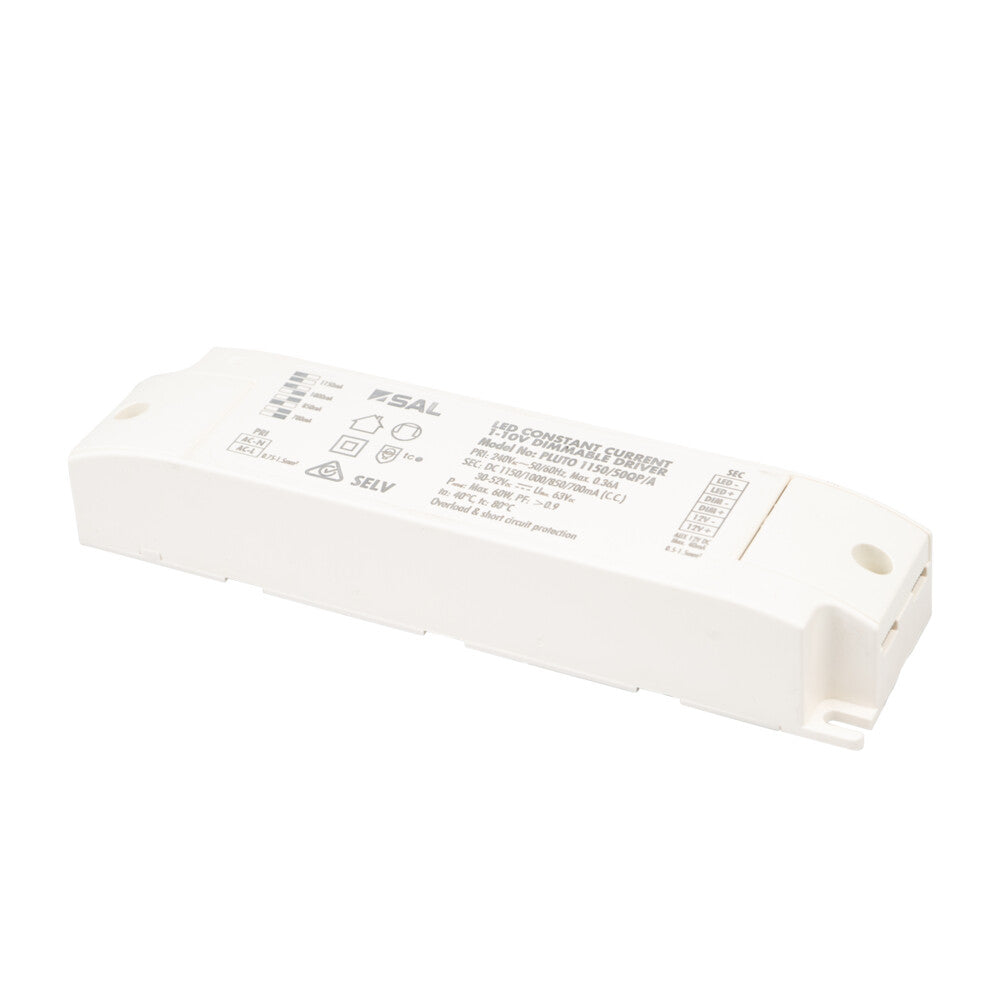

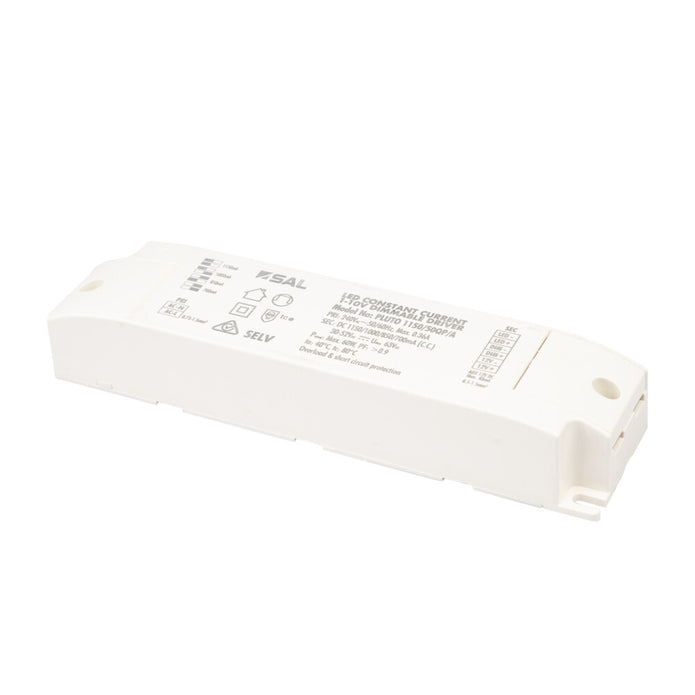

Australian approved 1-10V dimmable constant current LED driver with selectable output.
Key features
- The perfect choice for constant current electronic lighting circuits
- SELV and EMC compliant, safe no load operation
- Compact design profile
- Overload and short circuit protection
- Dimmable 1-10V, dimming range 10%~100%
- Secondary output range: 650/500/350/200mA (PLUTO 650/30QP/A), 1150/1000/850/700mA (PLUTO 1150/60QP/A)
- Auxiliary 12V DC power source (maximum sink current 40mA), Electrical class II, Do Not Cover.
Specifications
| Max. wattage |
60W |
| Dimmable |
Yes |
| IP rating |
IP20 |
| Voltage |
240V |
| Warranty (commercial) |
One Year |
| Warranty (residential) |
Two Year |
