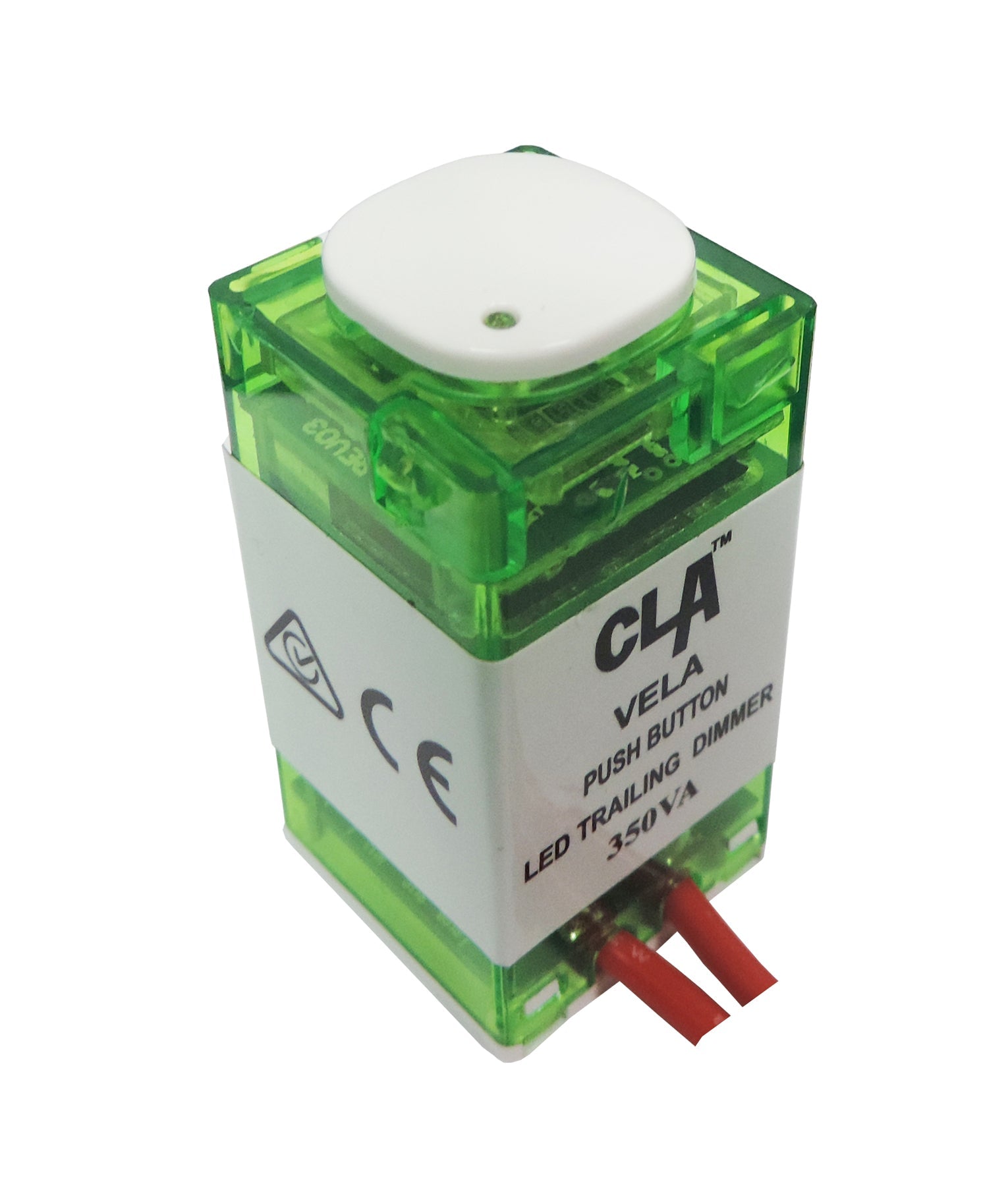

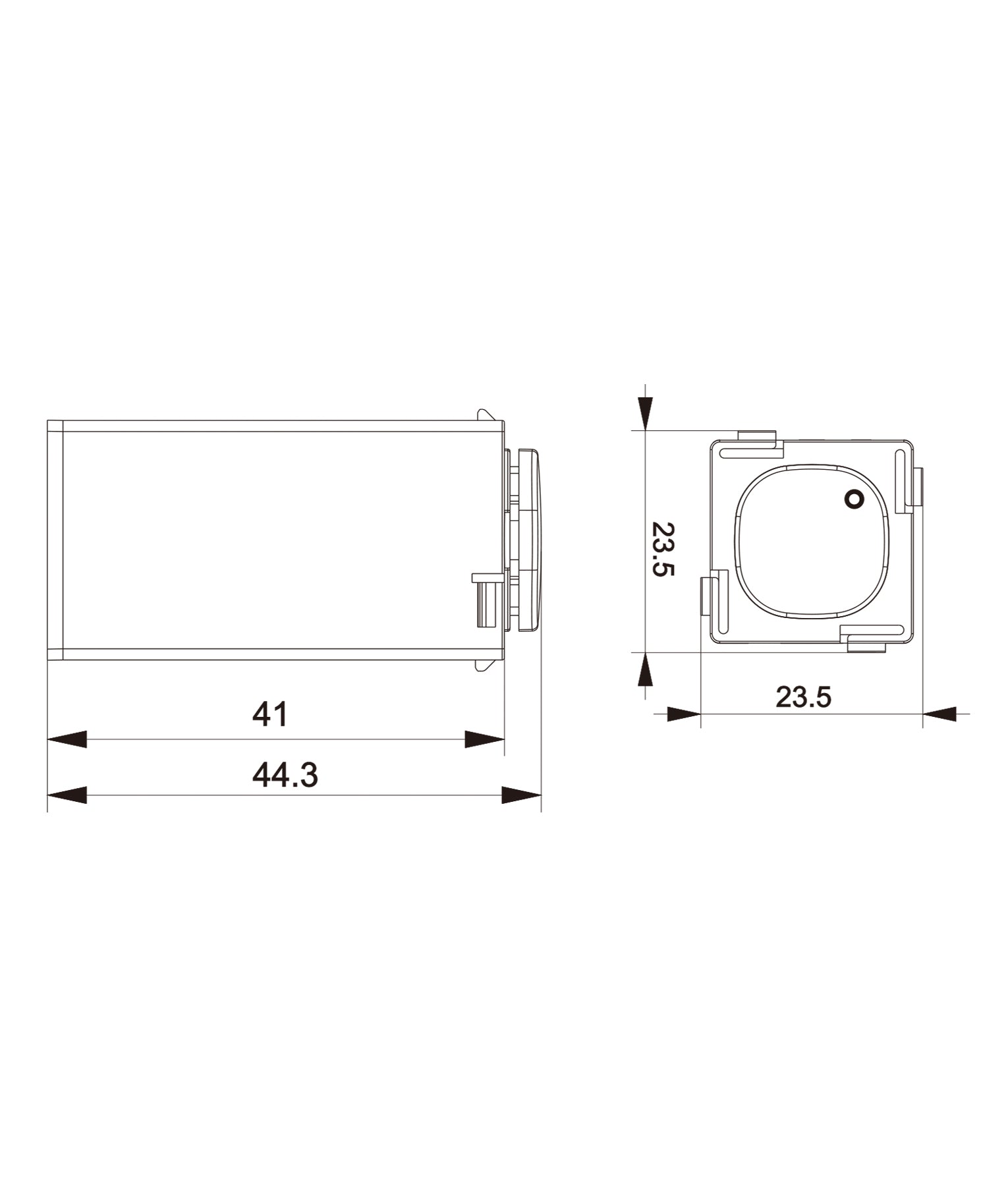

VELA: Push Button LED Trailing Dimmer
$68.65
Soft start
Overload protection & short circuit protection
Easy to mount in most Australian plates
Suitable for dimming dimmable LED globes, incandescent globes, high voltage halogen globes, electronic transformers with low voltage halogen globes
Long press dimming button to dim
Short press dimming button to on/off
Comes with 2 face caps round & square edged to suit most Australian plates
IP rating: IP20
Warranty: 3 year replacement warranty
*Must be installed by a licenced electrician (Installation instructions sheet provided in each product box).
Technical Spec:
Nominal Operating: Voltage 220-240V
Nominal Operating: Frequency 50Hz
Maximum Load: 350VA
Minimum Load: 10VA
Dimming Technique: Trailing Edge Phase Control
Mounting Centres: 84mm Australian Pattern Plate
Specifications Typical @240V 25°C
Suitable for Indoor Use only
No User Serviceable Parts Inside

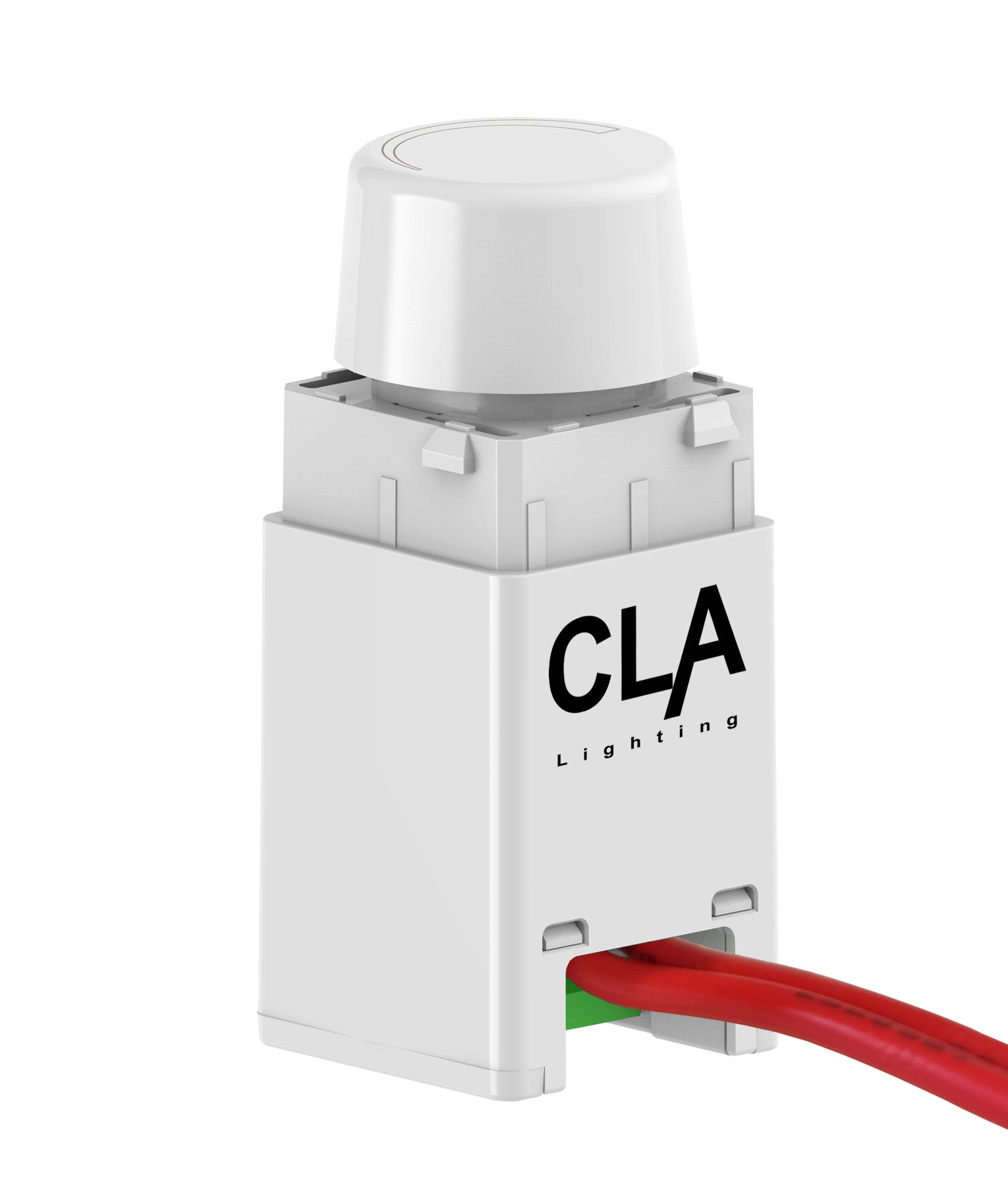

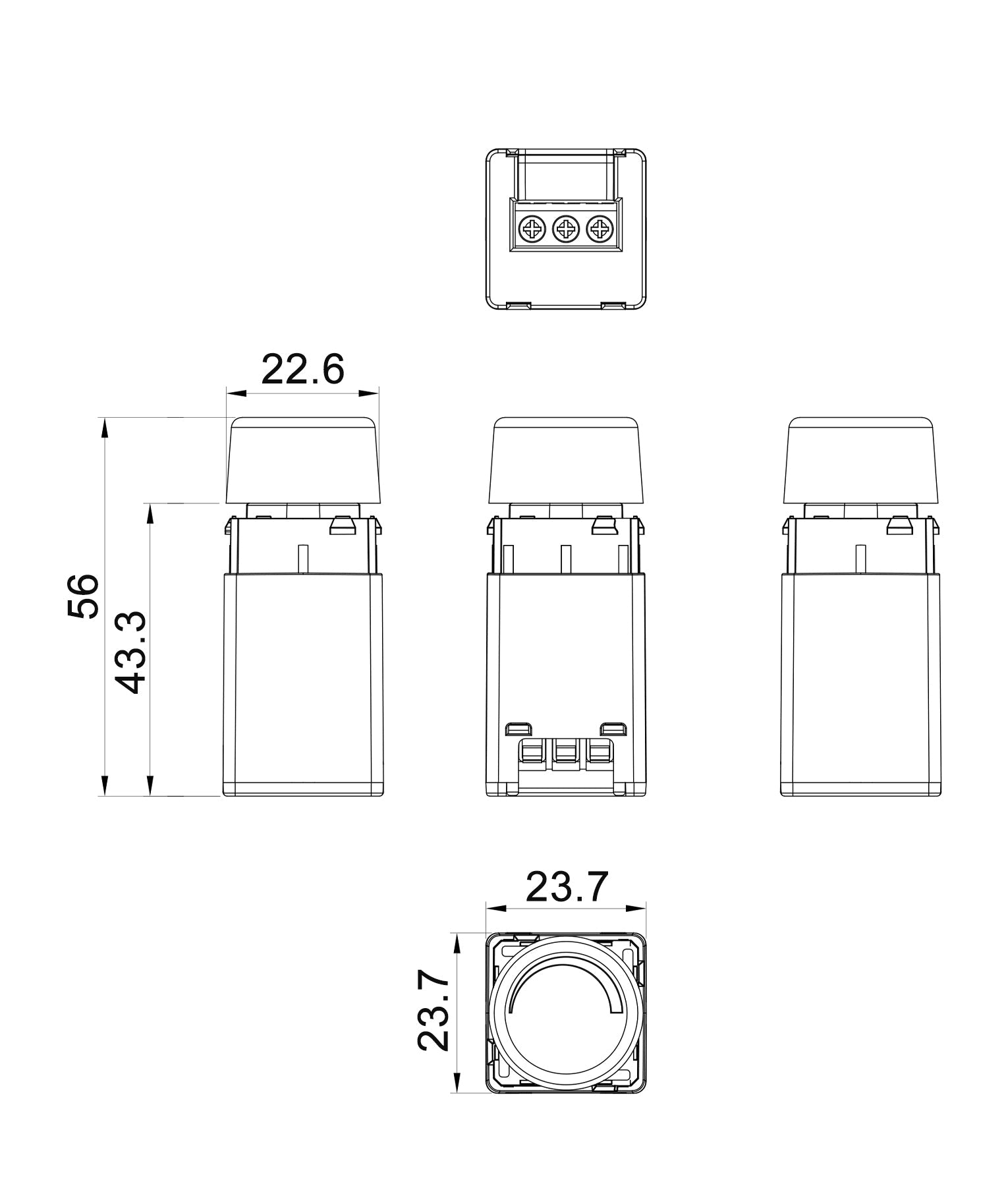

LYNX1: Trailing Edge Rotary Dimmer
$41.55
Fits Australian standard wall switch plate apertures (eg. the trader ranges, plus HPM, Legrand and Clipsal ranges)
Separately switched 2-wire design-no neutral wire connection required for wall plate retrofit installation
Inbuilt overload protection and short circuit protection
Incorporates a thermal fuse
Rotary control
Protected against damage from connection to incompatible inductive load types (ig. motor loads), via conduction angle wind-back
Complies with all relevant Australian standards
"Soft-start" help prolong lamp and driver life
Rated power: 300W
Operating temperature: 0 to 35°C
Warranty: 3 year replacement warranty
Product Application:
Can directly replace the existing wall switch to adjust dimmable LED lamp, halogen lamp and dimmable CFL.
Suitable for public places such as family bedroom. apartment, hotel, and hospital and so on.
*Must be installed by a licenced electrician (Installation instructions sheet provided in each product box)

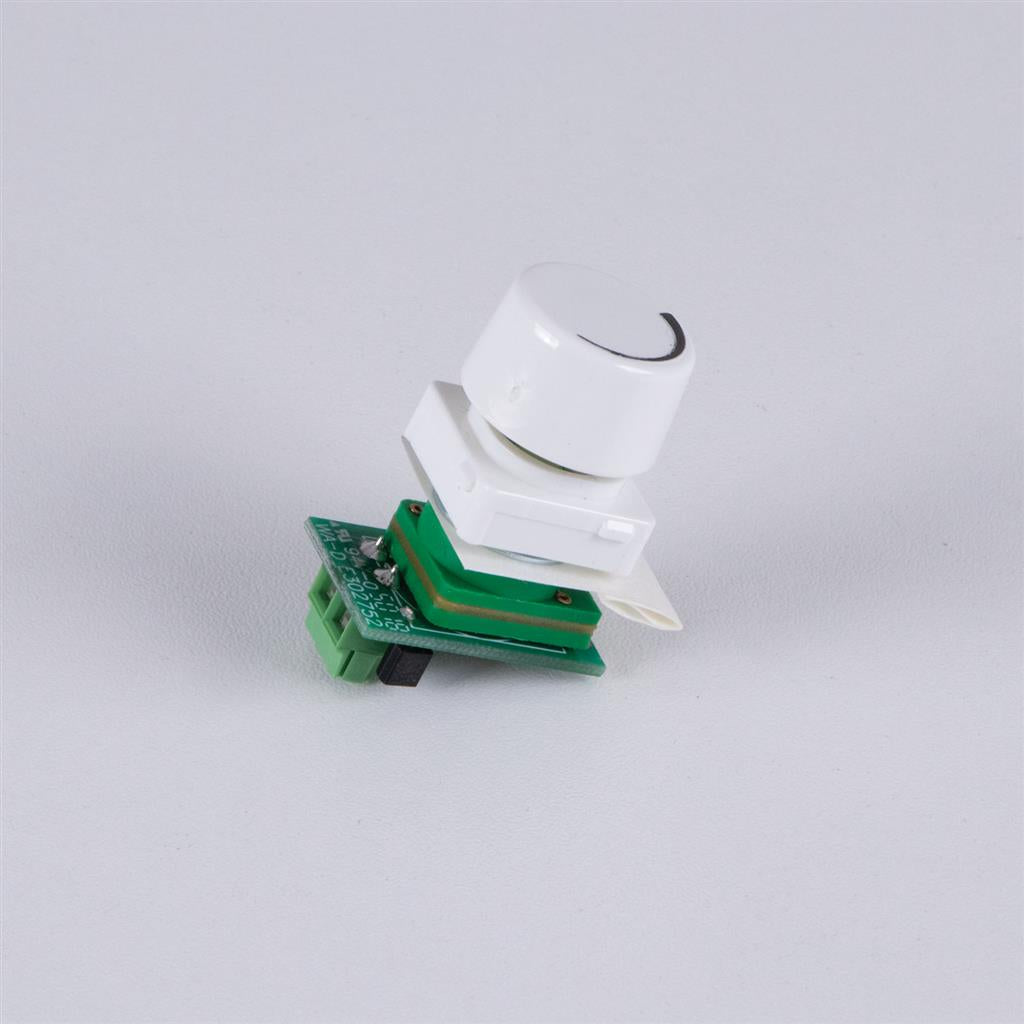

1-10V Analogue Dimming Pod for use for LED Signal Control - Clipsal Switch plate adaptable
$202.90
1-10V Dimming pod to suit Clipsal switch plates (Not for 240VAC usage)

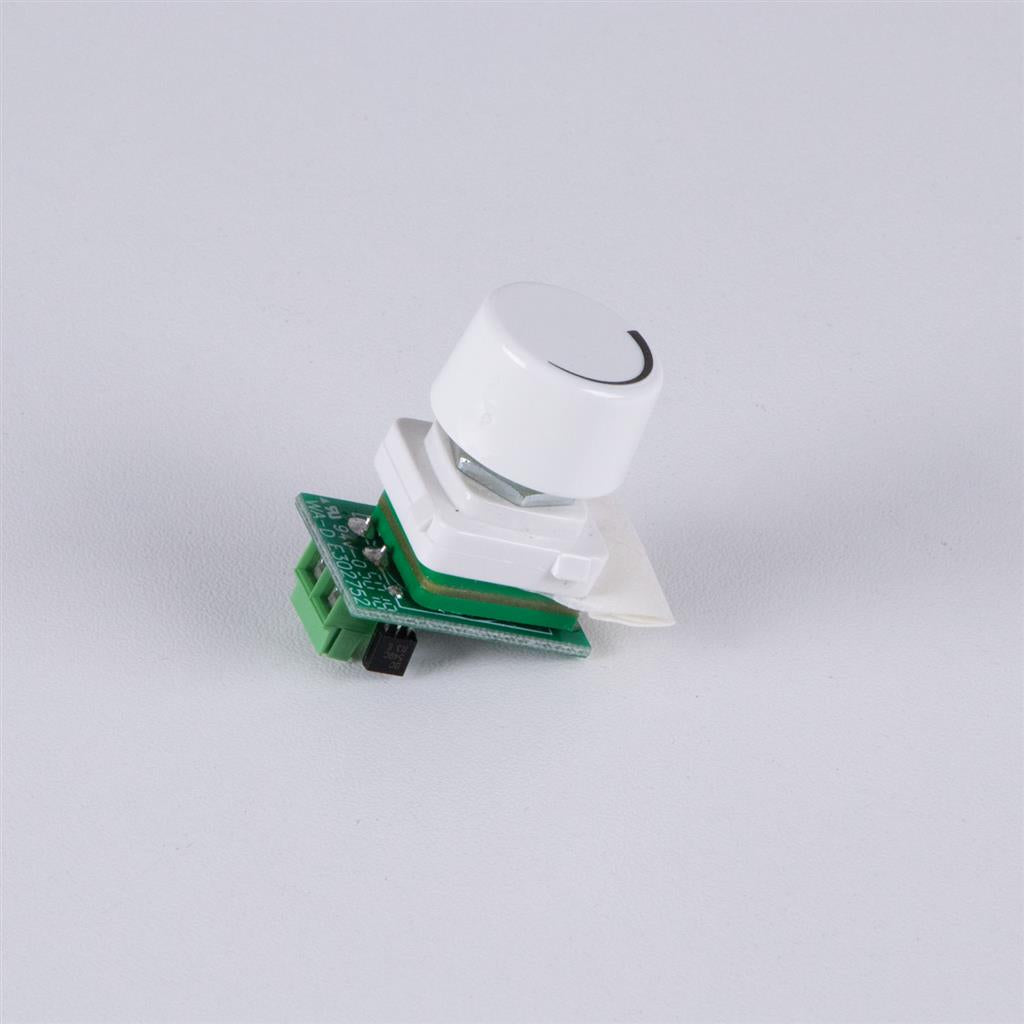

1-10V Analogue Dimming Pod for use for LED Signal Control - HPM Switch plate adaptable
$202.90
1-10V Dimming pod to suit HPM switch plates (Not for 240VAC usage)
