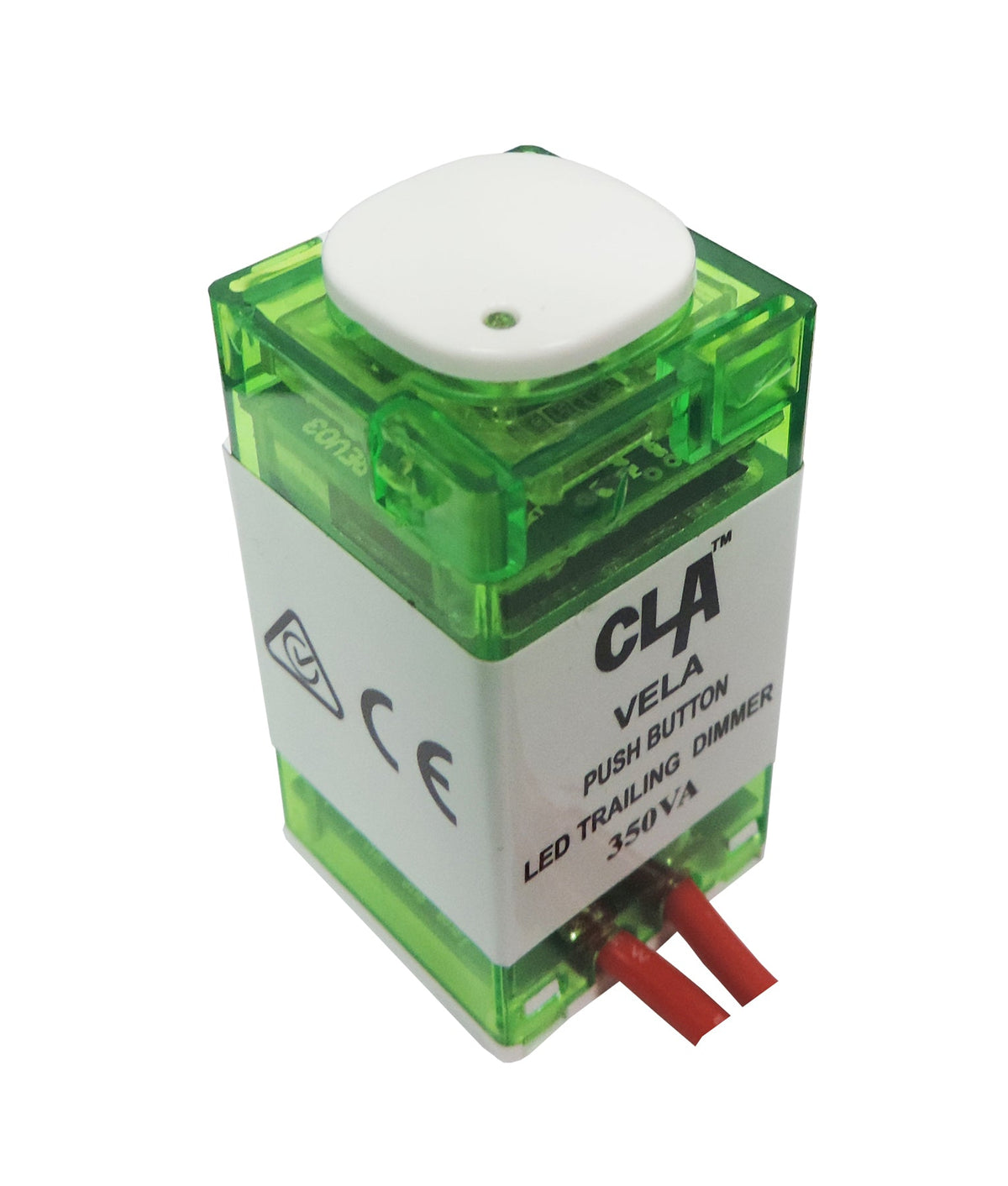

VELA: Push Button LED Trailing Dimmer

• Soft start
• Overload protection & short circuit protection
• Easy to mount in most Australian plates
• Suitable for dimming dimmable LED globes, incandescent globes, high voltage halogen globes, electronic transformers with low voltage halogen globes
• Long press dimming button to dim
• Short press dimming button to on/off
• Comes with 2 face caps round & square edged to suit most Australian plates
• IP rating: IP20
• Warranty: 3 year replacement warranty

*Must be installed by a licenced electrician (Installation instructions sheet provided in each product box).

Technical Spec:

• Nominal Operating:  Voltage 220-240V
• Nominal Operating:  Frequency 50Hz
• Maximum Load: 350VA
• Minimum Load: 10VA
• Dimming Technique: Trailing Edge Phase Control

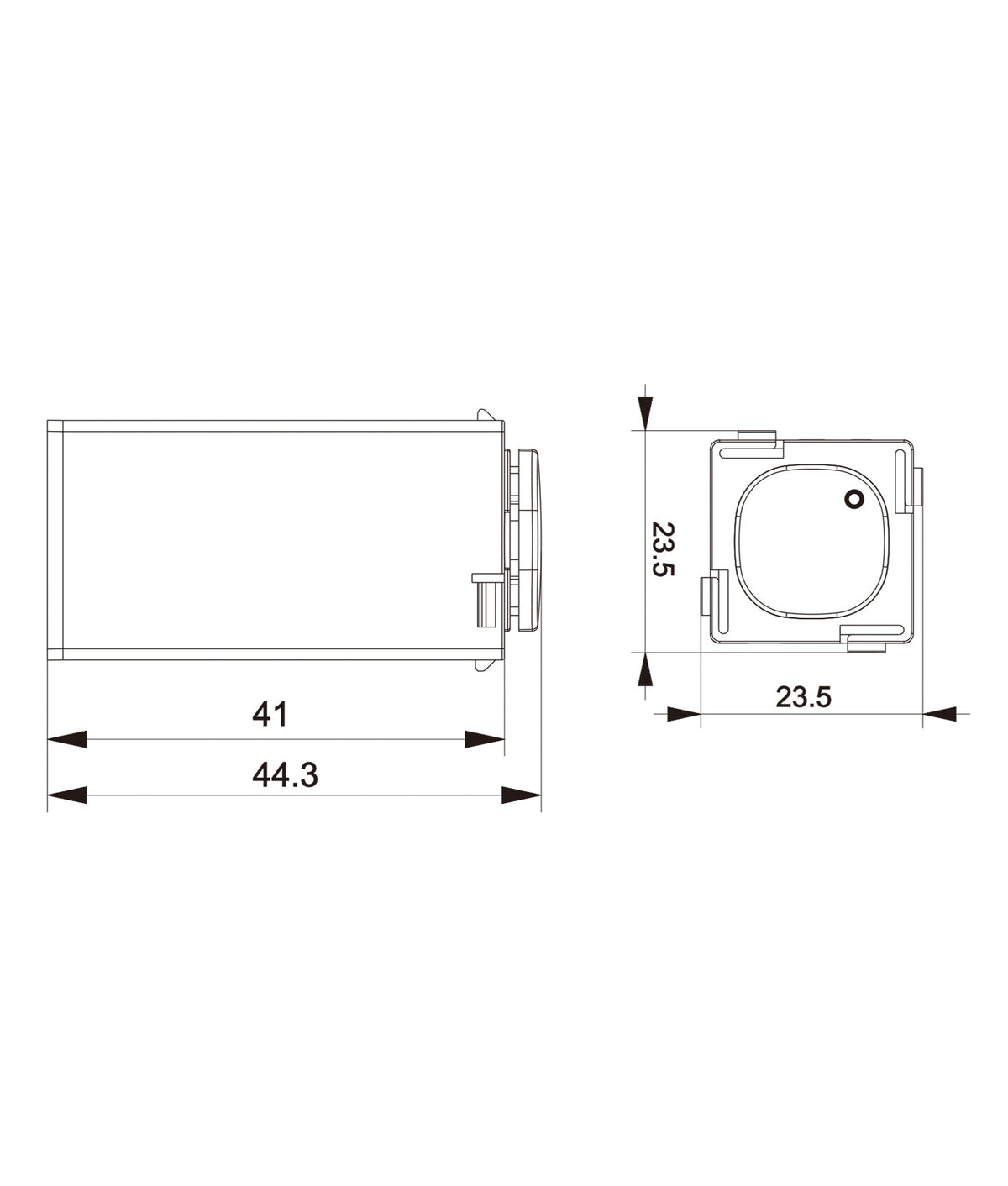

• Mounting Centres: 84mm Australian Pattern Plate
• Specifications Typical @240V 25°C
• Suitable for Indoor Use only
• No User Serviceable Parts Inside
