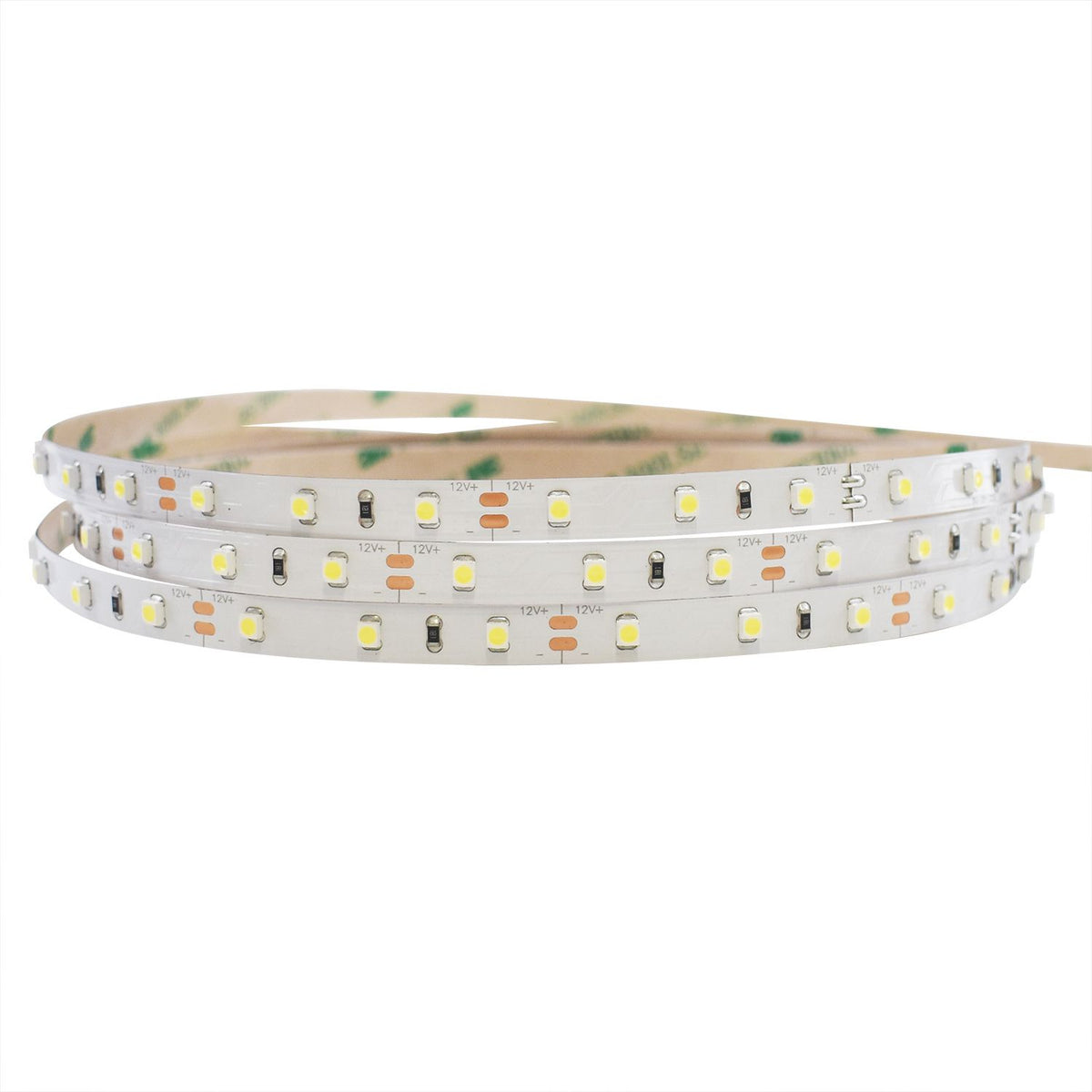

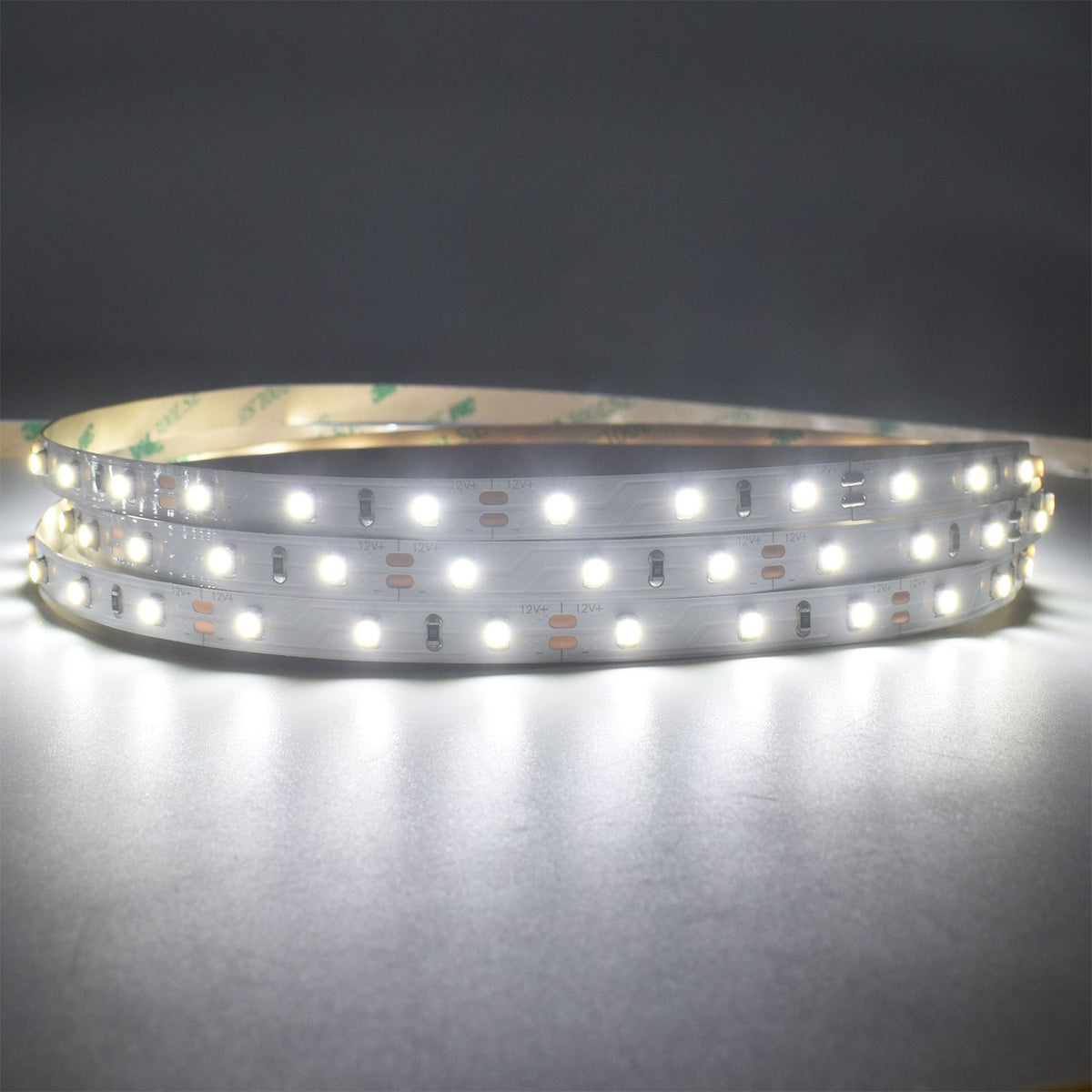

4.8w 3528 LED Strip Light - 12v - IP20
- Supplied in custom lengths or 50m reel.
- Charged per 500mm and comes complete with professionally soldered tails.
Features:
| Code: 1m |
5535001-12v-IP20-6K |
| Code: 30m Reel |
5535001-12v-IP20-6K-50m |
| Wattage |
4.8w/m |
| Voltage |
12v DC |
| IP Rating |
IP20 |
| LED Chip Type |
SMD |
| LED/m |
60 |
| Colour Temp |
6000K |
| Lumen Output |
480lm |
| Dimmable |
Yes (*with Dimmable Components) |
| CRI: |
>80 |
| Beam Angle: |
120o
|
| Wiring |
Parallel |
| Width |
8mm |
| Cutting Increments |
50mm |
| Max Run Length |
5000mm (5m) |
Installation:
- LED Strip light must be installed on aluminium heat sink or aluminium channel.
- LED Strip must be used with correct 12v DC or 24v DC power supply with adequate allowance of load.
- LED Strip must not exceed the maximum run length specified in product details.
- Do not bend, twist or strongly pull LED strip during installation.
- LED Strip must not be installed in wet areas, and locations where water can be accumulated.
Warranty:
- 3 Year Residential Warranty: If used less than 8 hours per day.
- 1 Year Residential Warranty: If used for more than 8 hours per day.
- 1 Year Commercial Warranty.
Please note:
- All LED Strips are tested and carefully packed before dispatch.
- If products are defective during warranty period, they will be replaced under warranty terms.
- Vencha is not responsible for any additional expenses such as transport, access equipment and installation fees.
- Warranty does not cover damage caused by connection to batteries, vehicles, solar panels, alternators, or other unregulated DC power sources.
Returns:
- LED Strip supplied in custom lengths cannot be returned.
- LED Strip supplied in 30m Reels can be accepted but may incur restocking fees.
