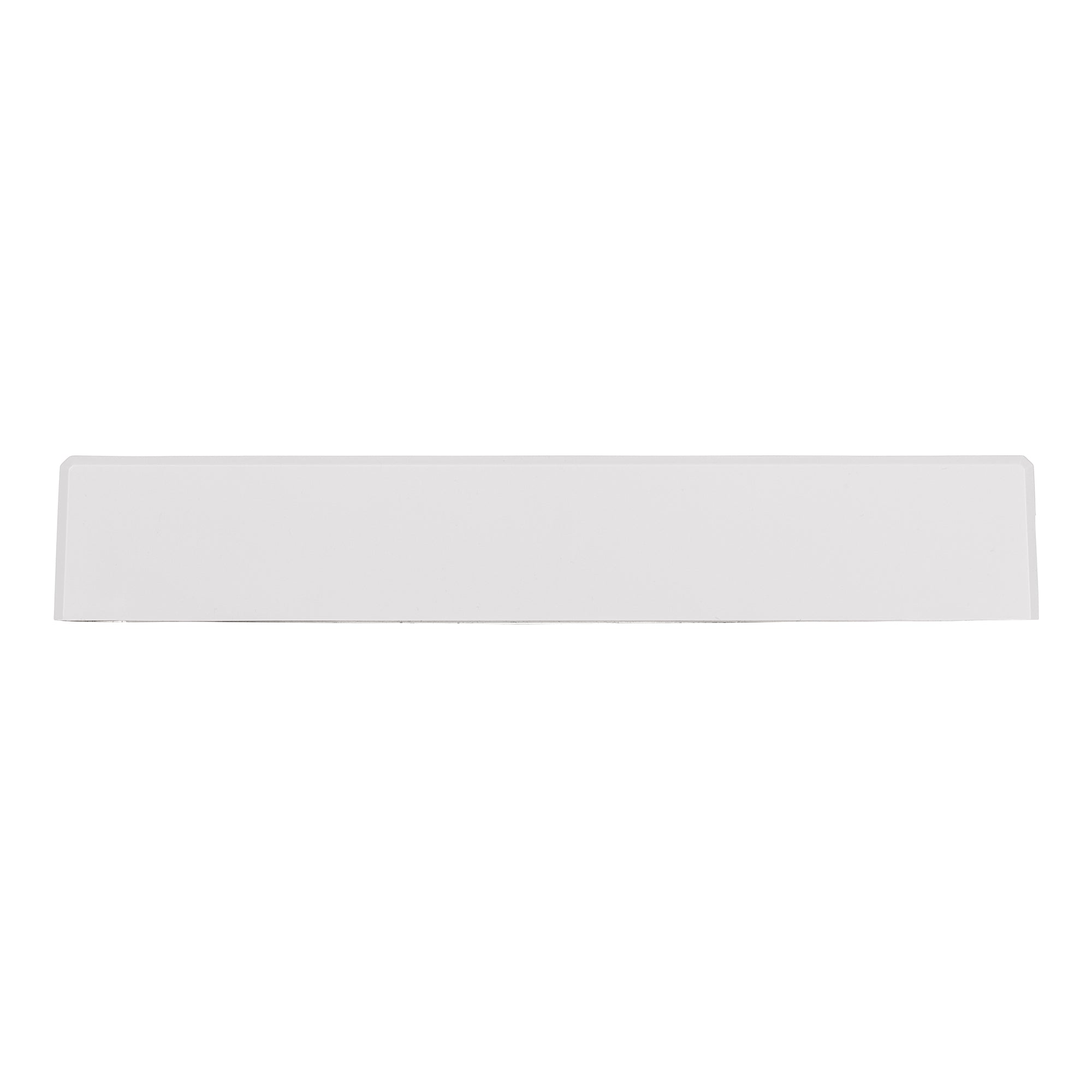

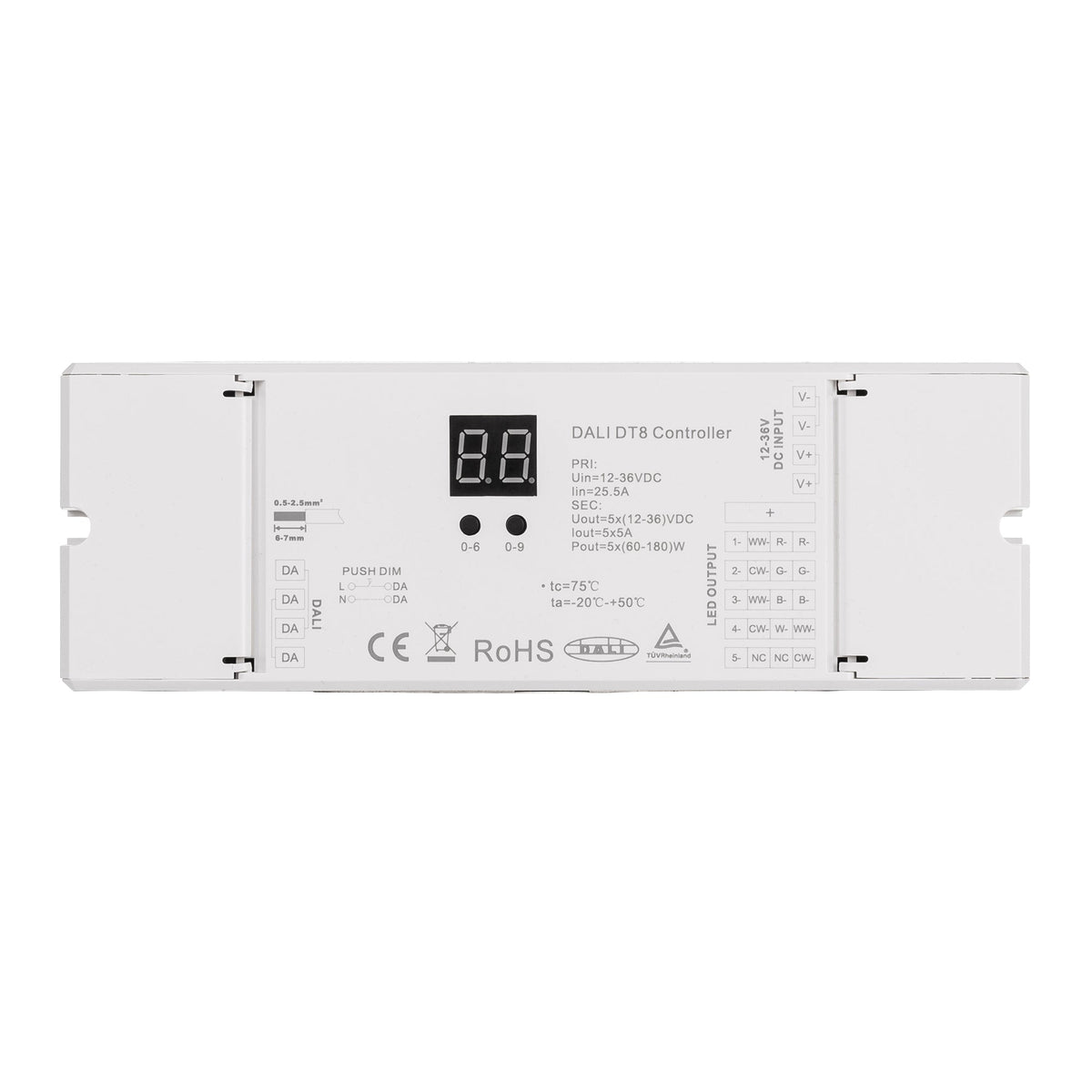

HV9107-2309P-5C - Dali DT8 LED Strip Controller

• Dali DT8 LED strip controller
• For use with CT, RGBW + RGBCW LED strip
• Built-in DALI-2 interface, DALI DT8 device
• Multi-addresses enabled DT8 control gear
• Multi-devices integrated in one control gear
• Multi-functional, 7 in 1: Tc, RGBWAF, XY, 2*Tc, XY+Tc, RGB+Tc, XY+W (DT6)
• DALI address manually assignable through manual set buttons and showed on the display
• Can be set as different device types: single-address types or multi-addresses types
• Single-address device types: Tc, RGBWAF, XY
• Multi-addresses device types: 2*Tc, XY+Tc, RGB+Tc, XY+W (DT6)
• 5 Channels constant voltage output
• Control of five PWM outputs via DALI device type 8
• Colour control as defined in the DALI specification device type 8
• Supports DT8 device commands, compatible with universal DALI masters that support DT8 commands
• Configuration via DALI master USB interface
• Colour temperature and RGB Colour control through push dim mode even without DALI
• Input voltage: 12v DC or 24v DC
• Max Load: 12v DC 300w / 24v DC 600w

• 3 years replacement warranty (items ordered after 01/01/22)
