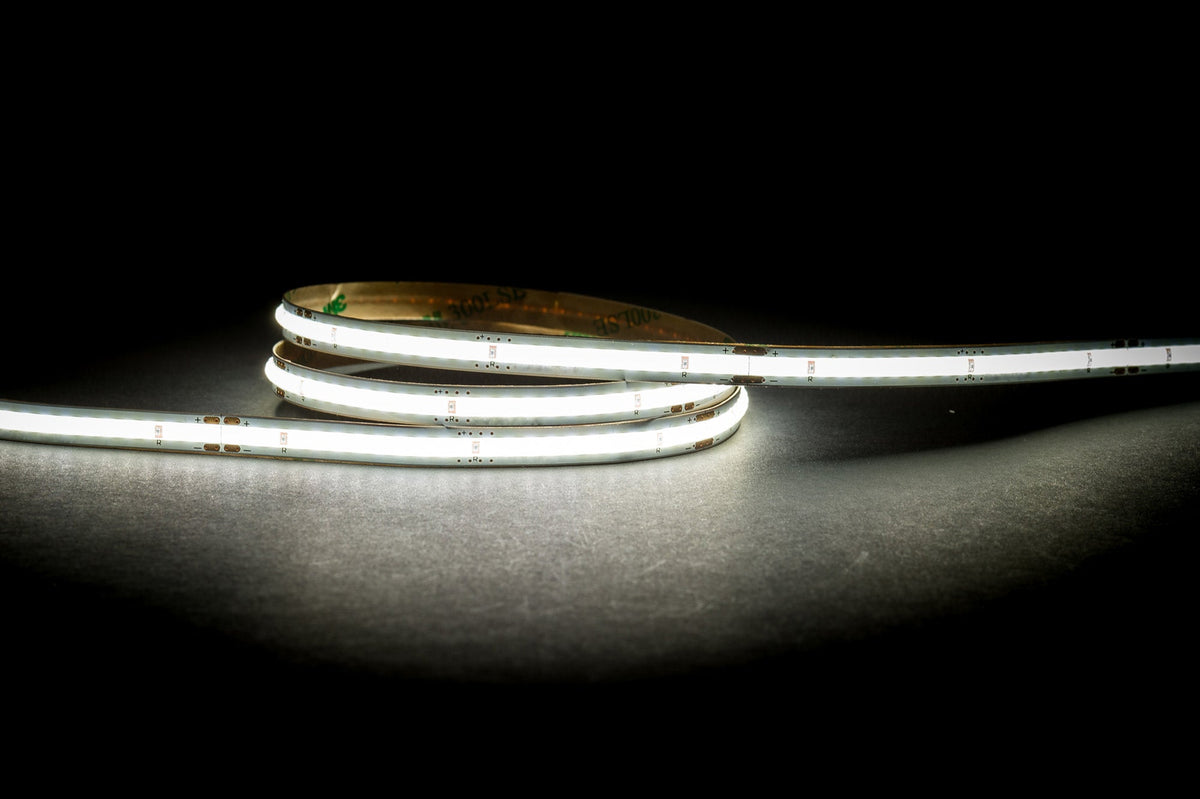

HV9762-IP20-480-5K - 14.4w IP20 24v DC 5500K CSP Dotless LED Strip

• 5500k CSP LED strip
• 14.4w per metre
• 480 LED chips per metre
• 1340lm per metre

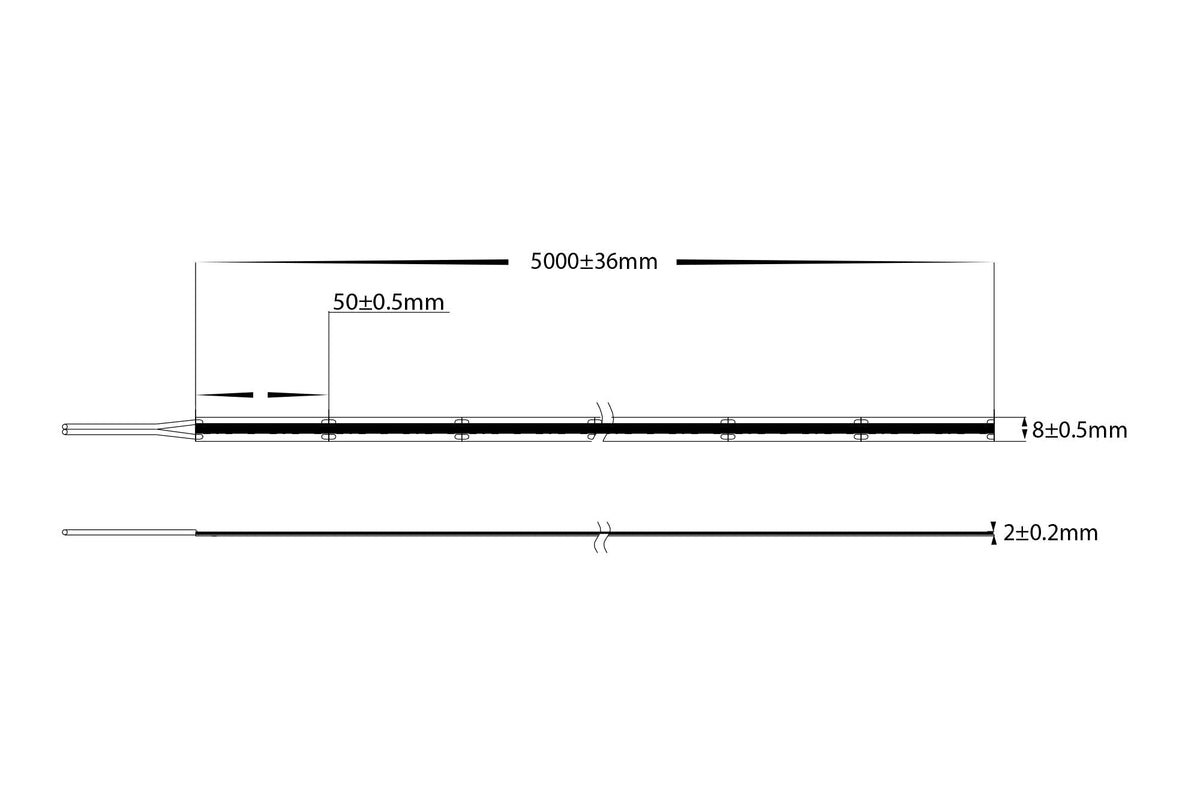

• Size: 8mm (W) x 2mm (H)
• Cutting increments: 50mm
• Beam Angle: 120 degrees
• Input voltage: 24v DC
• IP rating: IP20
• Supplied in either Custom Cut Length or 30m Roll
• Maximum length: 5 metres
• 3 Years replacement warranty (items ordered after 01/01/22)

Click here to view compatible Controllers

Must Be Installed On Aluminium Heat Dissipating Surface For Warranty Purposes.
