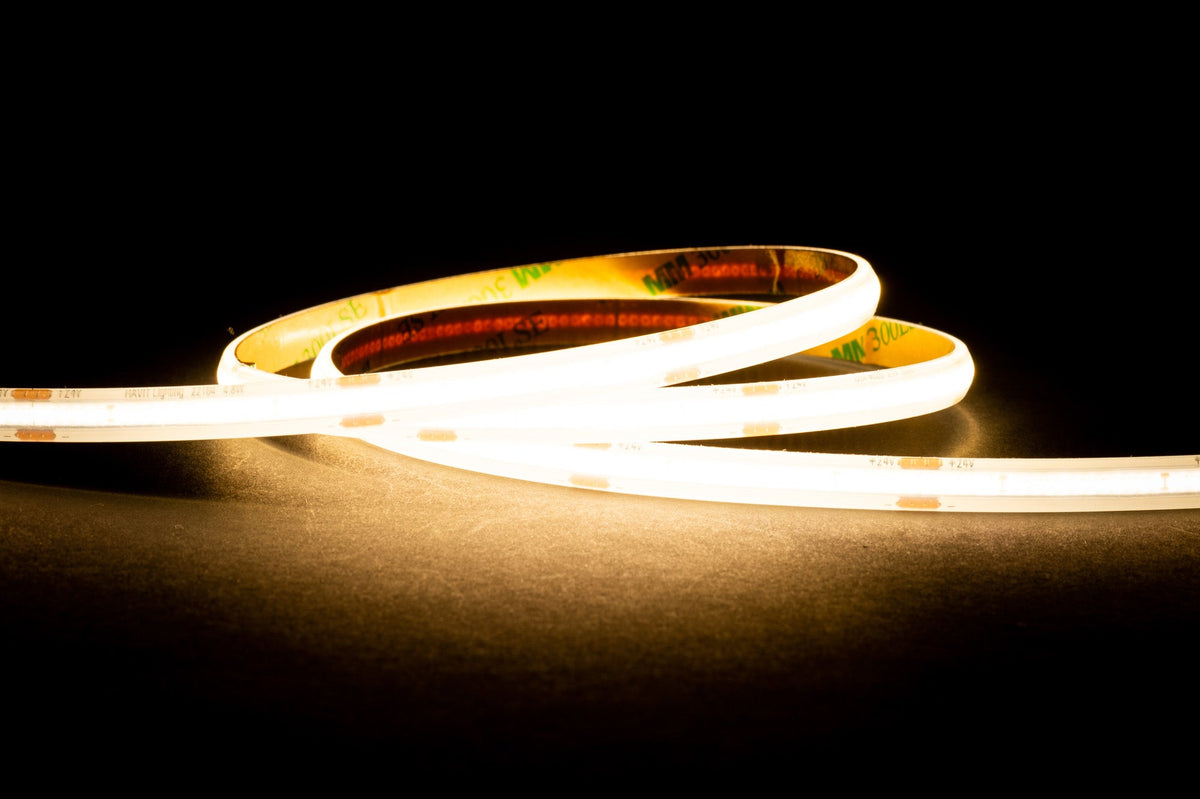

HV9762-IP54-320-4K - 10w IP54 24v DC 4000K CSP Dotless LED Strip

• 4000k CSP LED strip
• 10w per metre
• 320 LED chips per metre
• 1035lm per metre

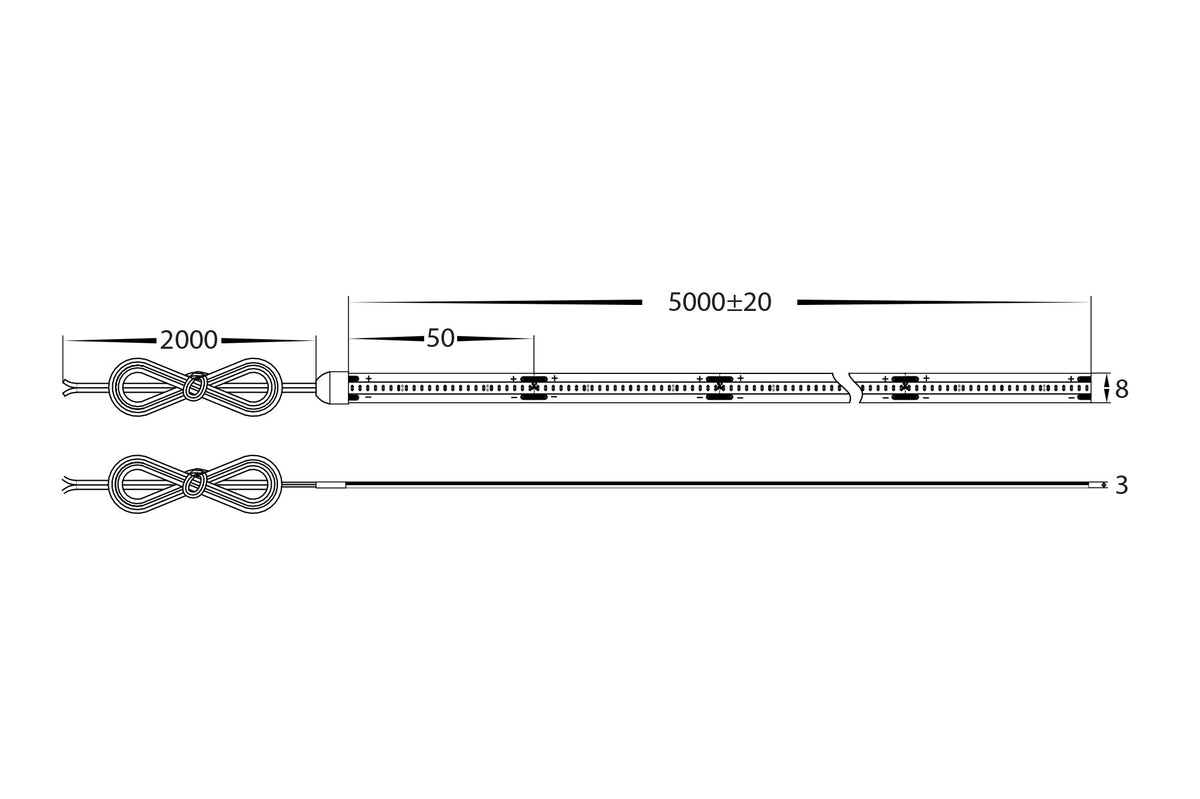

• Size: 8mm (W) x 3mm (H)
• Cutting increments: 50mm
• Beam Angle: 120 degrees
• Input voltage: 24v DC
• IP rating: IP54
• Supplied in either Custom Cut Length or 10m Roll
• Maximum length: 5 metres
• 3 Years replacement warranty (items ordered after 01/01/22)

Click here to view compatible Controllers

Must Be Installed On Aluminium Heat Dissipating Surface For Warranty Purposes.

Product Information

Data Sheet

Data Sheet

IES Files

IES Files

Install Sheet

Installation Instructions
