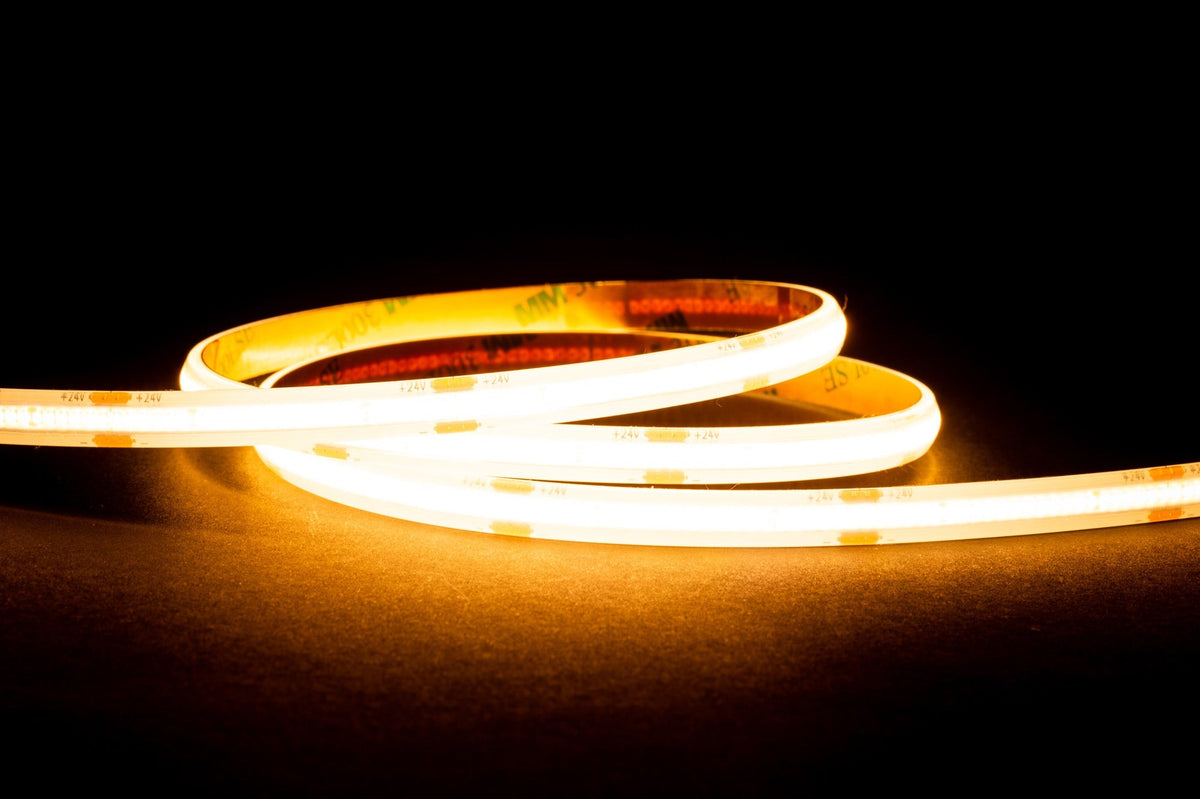

HV9762-IP54-480-3K - 14.4w IP54 24v DC 3000K CSP Dotless LED Strip

• 3000k CSP LED strip
• 14.4w per metre
• 480 LED chips per metre
• 1325lm per metre

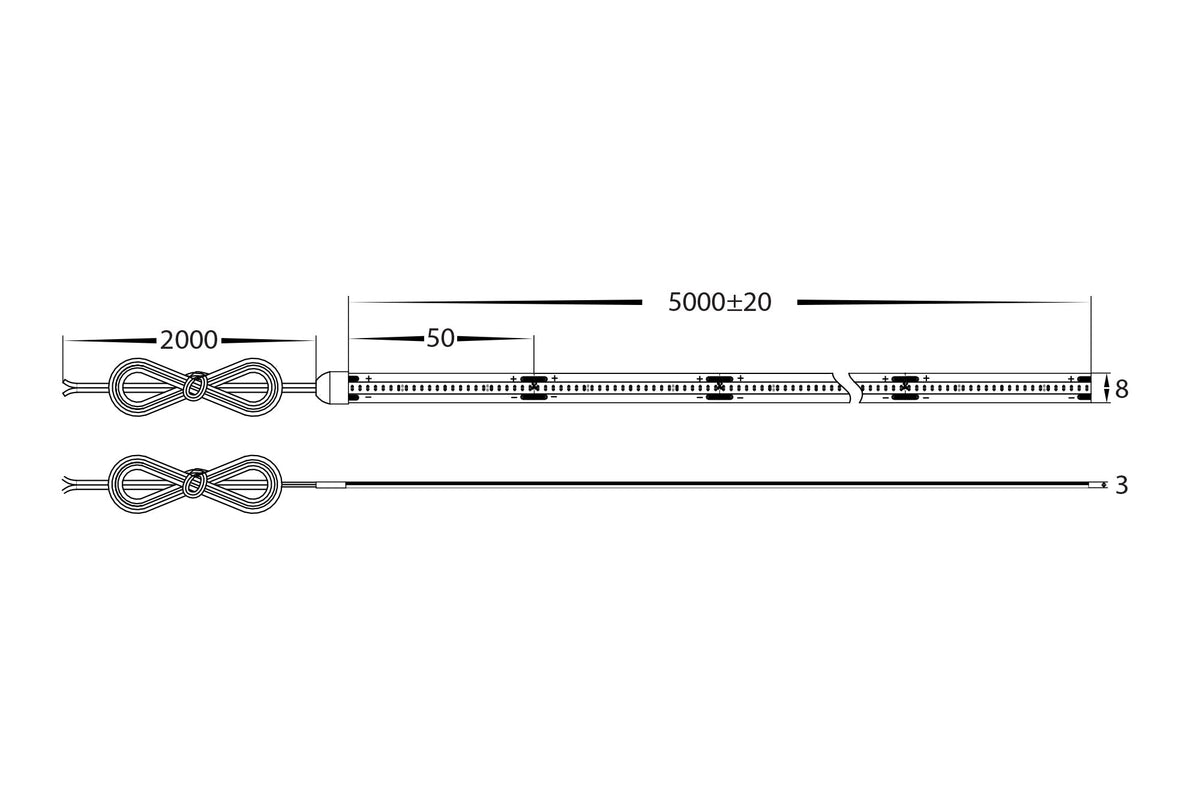

• Size: 8mm (W) x 3mm (H)
• Cutting increments: 50mm
• Beam Angle: 120 degrees
• Input voltage: 24v DC
• IP rating: IP54
• Supplied in either Custom Cut Length or 10m Roll
• Maximum length: 5 metres
• 3 Years replacement warranty (items ordered after 01/01/22)

Click here to view compatible Controllers

Must Be Installed On Aluminium Heat Dissipating Surface For Warranty Purposes.

Product Information

Data Sheet

Data Sheet

IES Files

IES Files

Install Sheet

Installation Instructions
