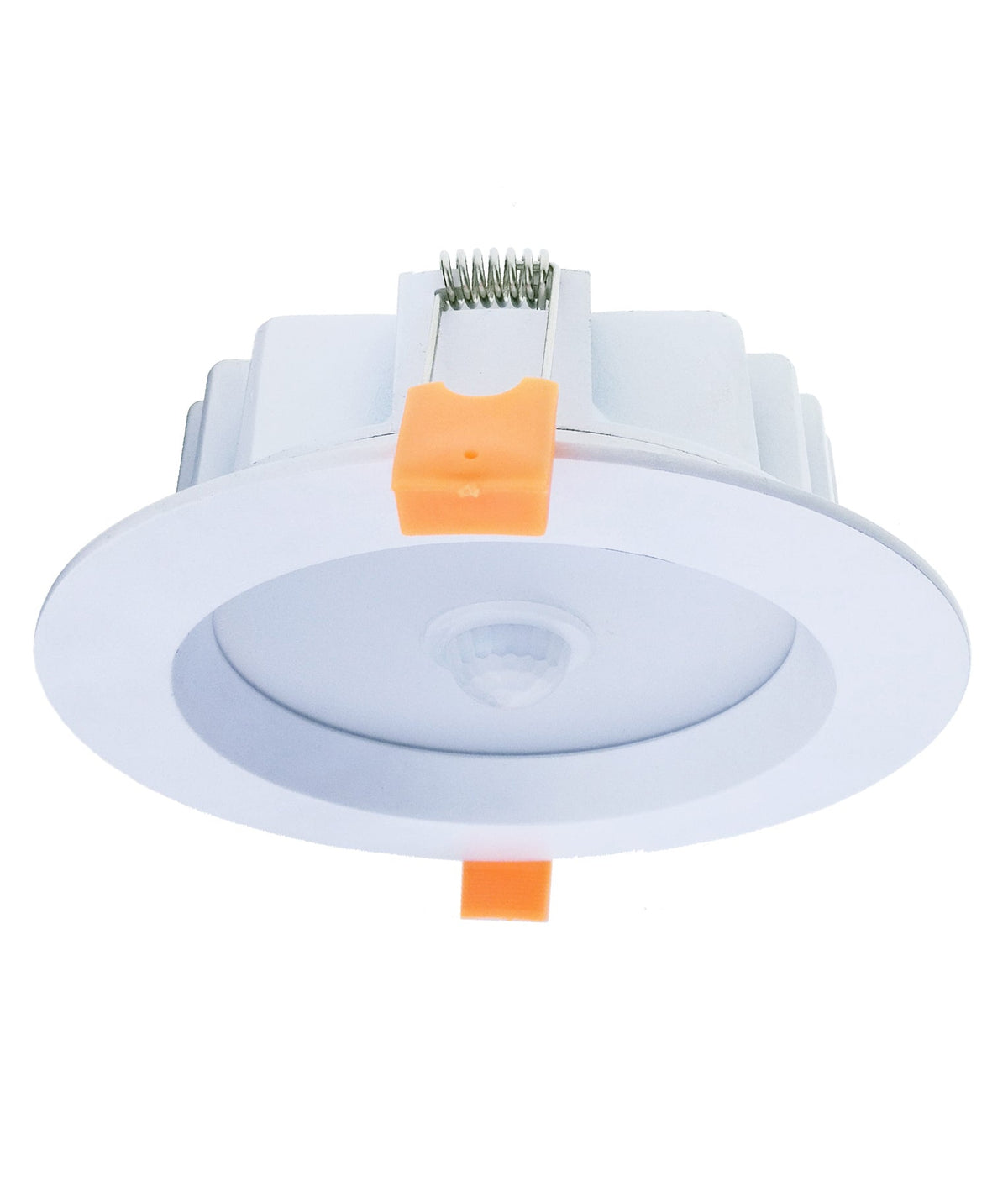

MOTION: LED Recessed Motion Sensor Downlights

• Input voltage range: 180-260V AC 50/60Hz
• Constant current LED driver included
• Material: aluminium & PC
• LED chips: SMD2835
• Power factor: >0.5
• PIR sensor type
• Max.detection diameter radius: 5m
• Time delay 90 seconds
• Detection range: 80°
• Block time: 0.2 seconds
• Not suitable for dimming
• Suitable for 2-way switching
• Ambient temp: -20 to 45°C
• Not suitable for dimming
• Suitable for 2-way switching
• IP rating: IP20
• Sensor operates Day and Night (No Manual Override)
• IC-F rated
• Warranty: 3 year replacement warranty

*Must be installed by a licenced electrician (Installation instructions sheet provided in each product box).
