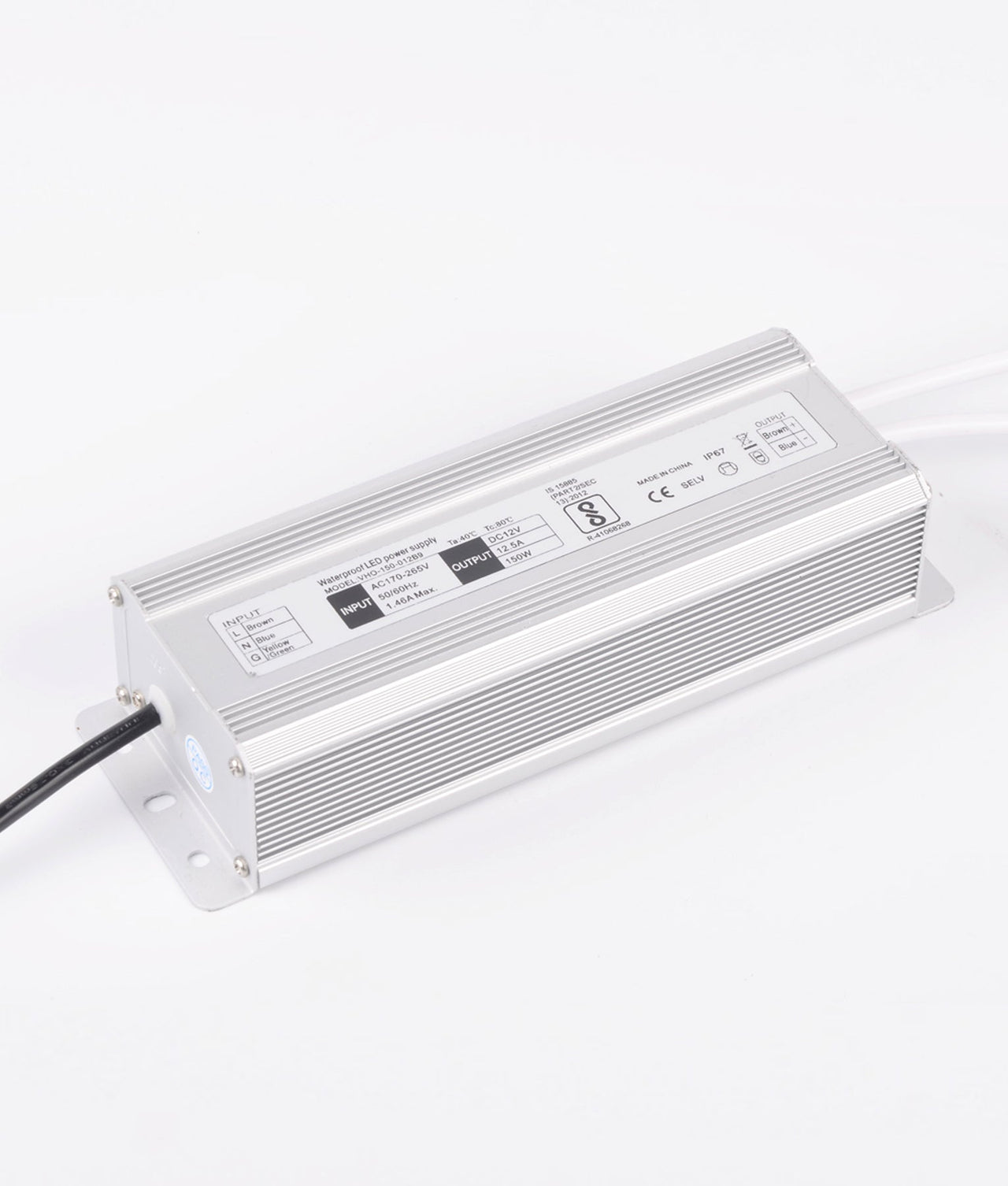

OTTER6: 12V Waterproof Constant Voltage LED Driver IP67 (200W)

• 12V DC constant voltage LED driver
• Input voltage: 170-265V 50/60Hz
• Output voltage: 12V DC
• Short circuit, overload and thermal protection
• Built in Active PFC function
• Ambient temperature: -30 to 50°C
• Flex & plug included: 1.2m
• IP rating: IP67
• Warranty: 3 year replacement warranty

This driver is manufactured with a split cable format for carrying increased current for easier connection of multiple loads
Each driver can be used:
● At full load capacity by connecting all cables to one terminal block
● With any combination of split cables (as long as the minimum and maximum loads below are adhered to)
FULL load capacity CANNOT be connected to one cable

*Must be installed by a licenced electrician (Installation instructions sheet provided in each product box).

*To avoid disappointment and warranty problems, please ensure the IP rating of the chosen product is relevant for the intended use.

*When calculating quantity of lamps to be used per driver / transformer:
Minimum Load: 10% of rated power;
Maximum Load: 80% of rated power.
