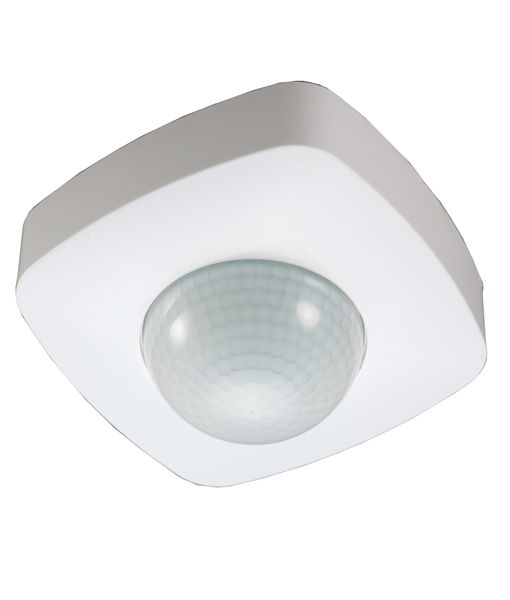

SENS005: Infrared Surface Mounted Motion Sensors IP20

• Input voltage: 220-240V 50/60Hz
• Suitable for use with LED
• 3 wired
• UV resistant
• Surface mounted
• Large detection range
• Housing: PC
• Detection range: 360°
• Detection distance: 20m max(<24°C)
• Detection motion speed: 0.6-1.5m/s
• Rated load: 2000W HAL/ 1000W CFL/ 1000W LED
• Time delay: min.10sec±3sec; max.30min±2min
• Ambient light: <3-2000lux (adjustable)
• Installation height: 2.2-6m
• IP rating: IP20
• Warranty: 5 year replacement warranty

*Must be installed by a licenced electrician (Installation instructions sheet provided in each product box).
