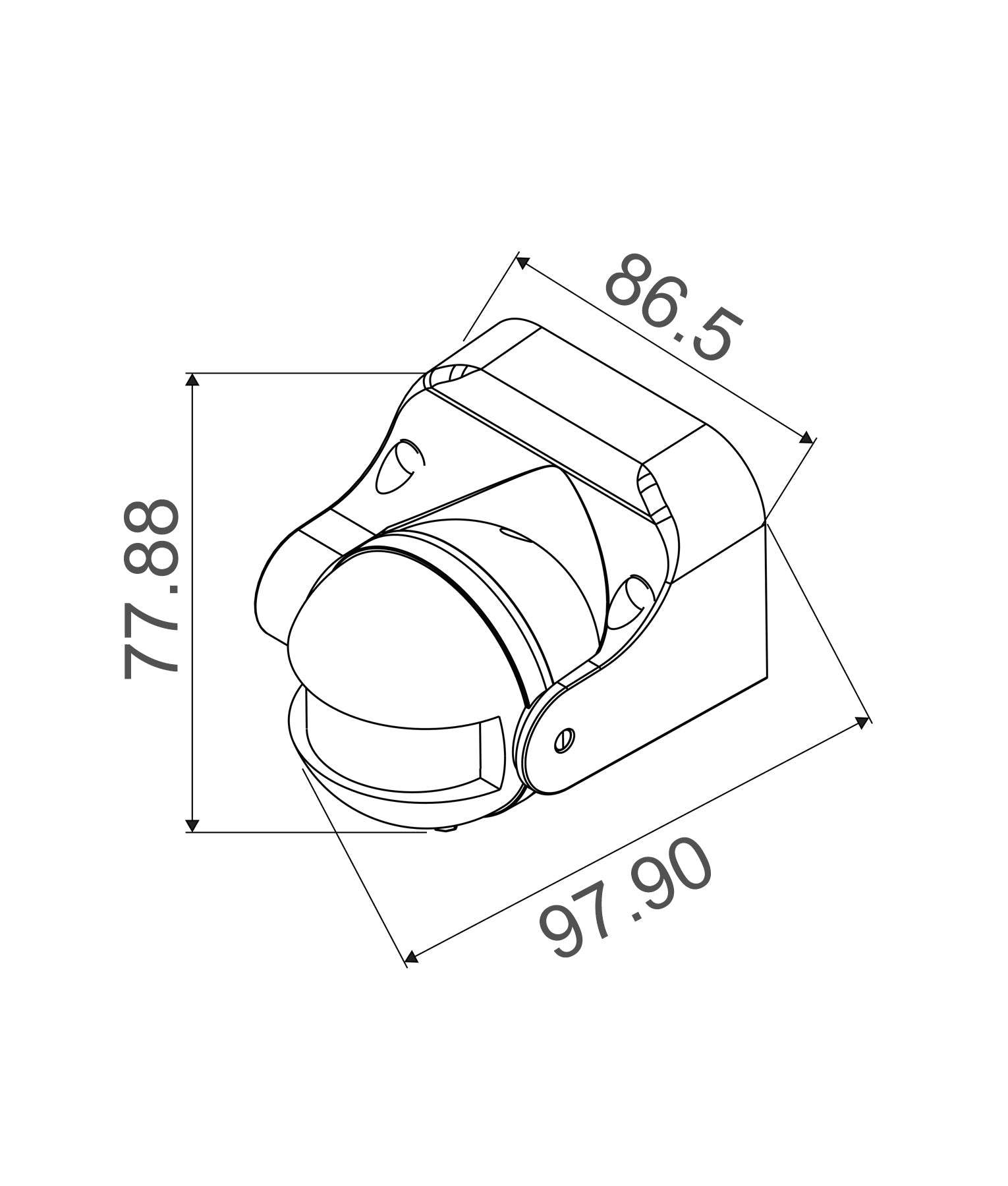

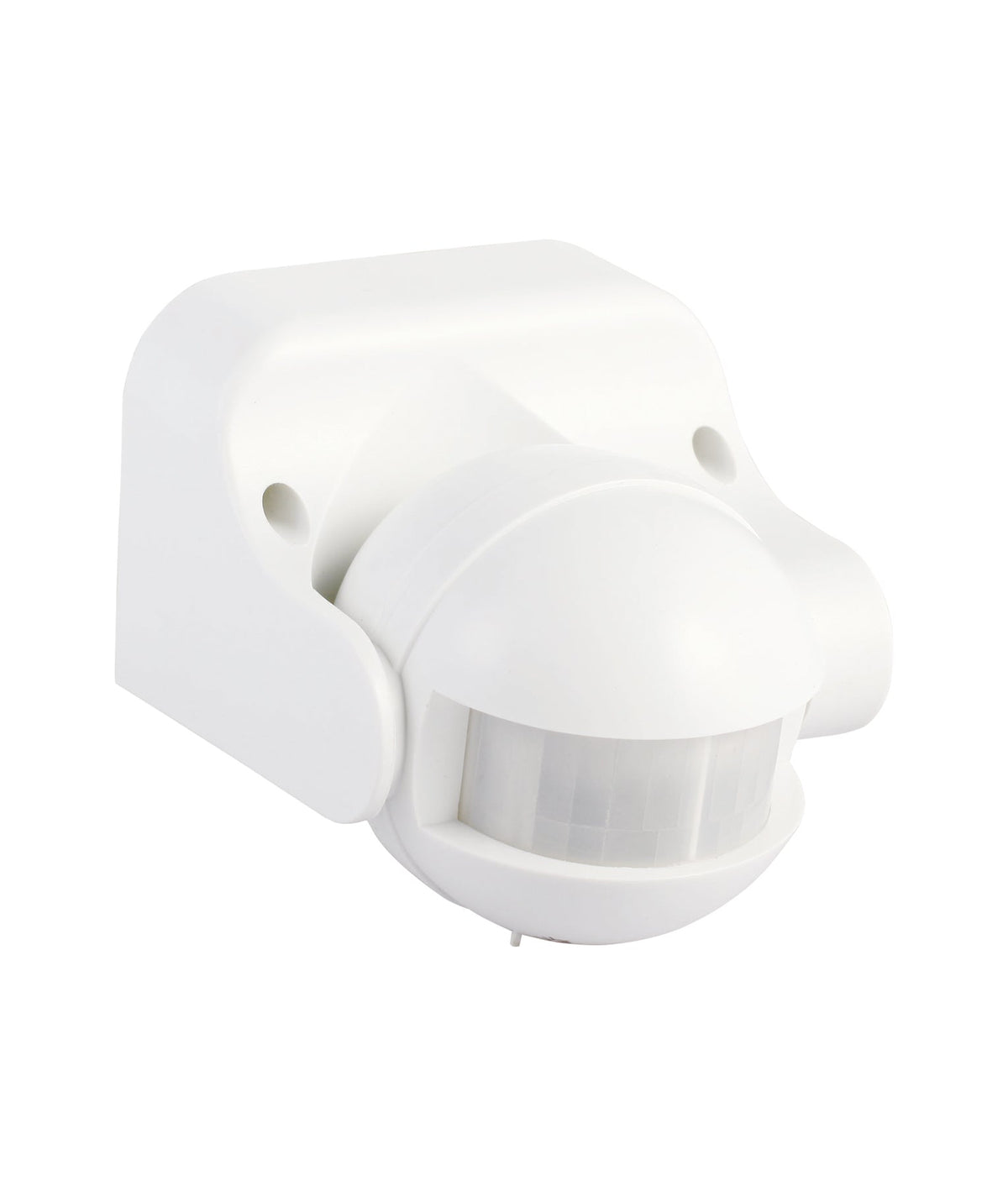

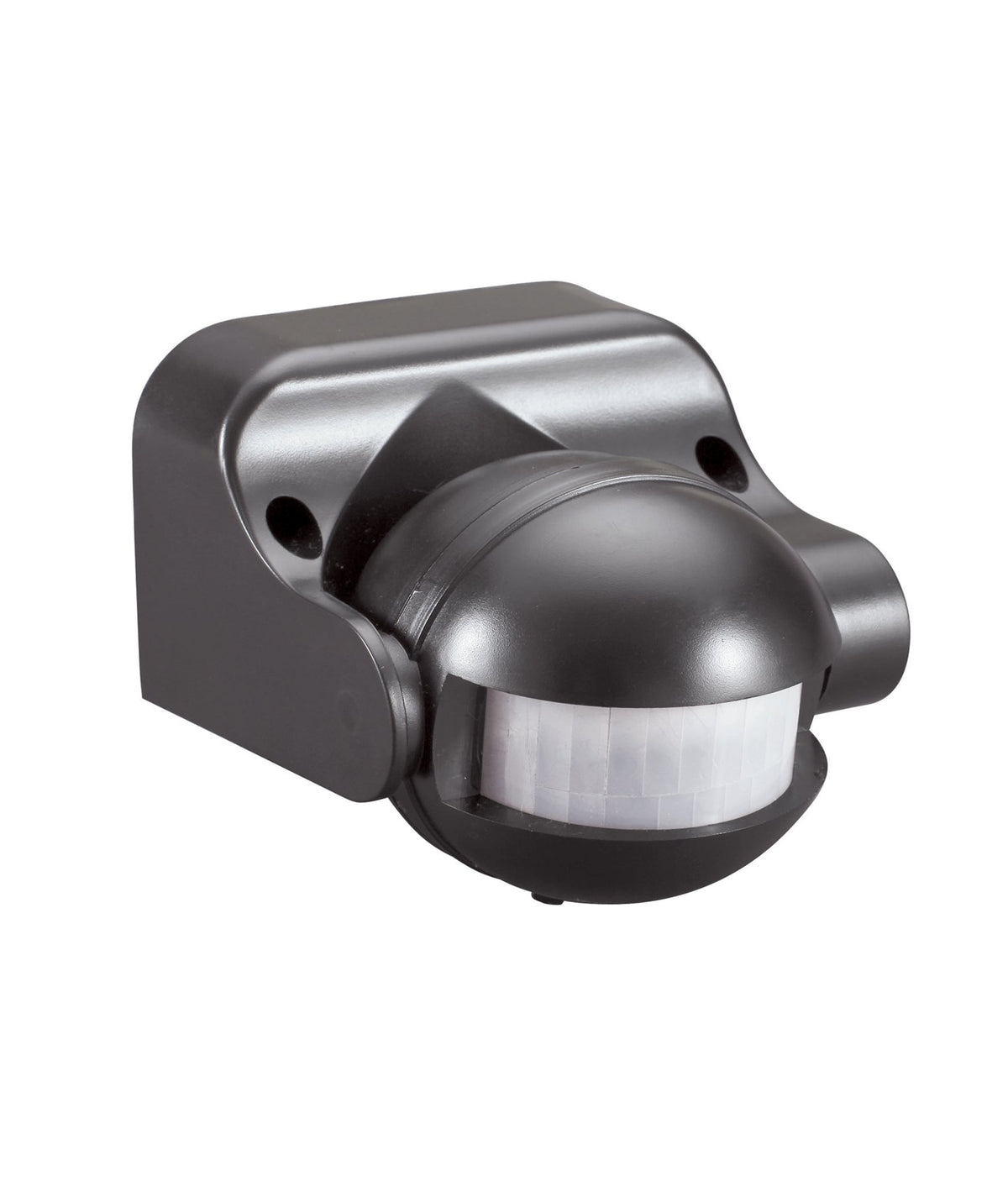

SENS012-013: Adjustable Infrared PIR Surface Mounted Sensors IP44

• Input voltage: 220-240V 50/60Hz
• Surface mounted
• Housing: PC
• Detection range: 180°
• Detection distance: 12m max(<24°C)
• Detection motion speed: 0.6-1.5m/s
• Rated load: 1200W HAL/ 600W CFL/ 600W LED
• Time delay: min.10sec±3sec; max.15min±2min (restarts from last movement)
• Ambient light: <3-2000lux (adjustable)
• Ambient Temp: -20 to 40°C
• Working humidty: <93%RH
• Power consumption: approx. 0.5W
• Installation height: 1.8-2.5m
• 3 wired
• UV resistant
• Day/Night recognition
• Manual override
• IP rating: IP44
• Warranty: 5 year replacement warranty

*Must be installed by a licenced electrician (Installation instructions sheet provided in each product box).
